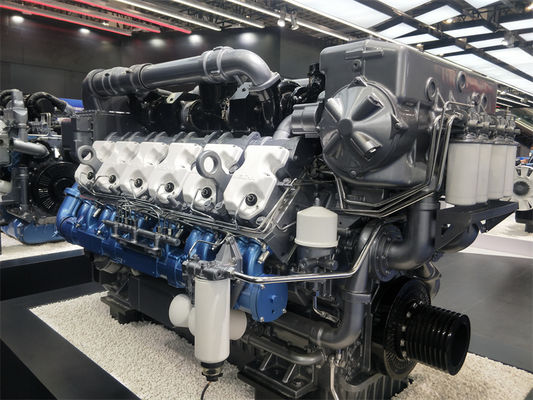

weichai 12M55 Baudouin 1500KW gas generator

The 12M55NG Series Engine is a new generation of high-end gas engines developed by Weichai. It offers enhanced reliability and a higher degree of automation. The engine delivers a continuous power output of 1580 kWm, making it suitable for 1400 kWe continuous power generator sets.

Rated Power

• Maximum Power: 1580 kWe

• Minimum Power: / kWe

• Maximum Torque Speed: / N·m / r/min

Emissions Standard

• Emission Level: China Non-road Stage III

General

• Product Series: 12M55NG

• Fuel Type: Natural Gas

• Engine Type: V-type 12-cylinder, four-stroke engine

• Number of Cylinders: 12

• Number of Valves: 4 per cylinder

• Bore: 180 mm

• Stroke: 215 mm

• Displacement: 65.65 L

• Aspiration: Turbocharged and intercooled

• Compression Ratio: 12:1

• Combustion System: Lean-burn, spark-ignited

• Rotation Direction (viewed from flywheel end): —

• Cooling System Capacity: — L

• Lubrication System (Fill Volume): — L

Engine Dimensions

• Length: 3254 mm

• Width: 1794 mm

• Height: 2199 mm

• Dry Weight: 9600 kg
